7001 7075 aluminum tent poles tubes fittings
2023-07-06 11:33:32

The supporting structure of the tent is the key to withstand the outdoor wind and rain, and its core is the tent pole. The quality of the tent pole is related to the performance of the tent, such as standing, breaking or collapse, and it is also a factor affecting outdoor comfort and safety. Most camping tents use aluminium tent poles or lighter aluminium alloys. Aluminum has good ductility, flexibility, not easy to break and good wind resistance. However, there are many kinds of aluminium tent poles. Low-quality aluminium poles are easy to deform and break.




The 7001 7075 aluminium tent pole produced by Chalco Aluminum is the first choice for many outdoor manufacturers to make tent poles, among which 7001 emphasizes high flexibility and 7075 emphasizes rigidity and hardness.

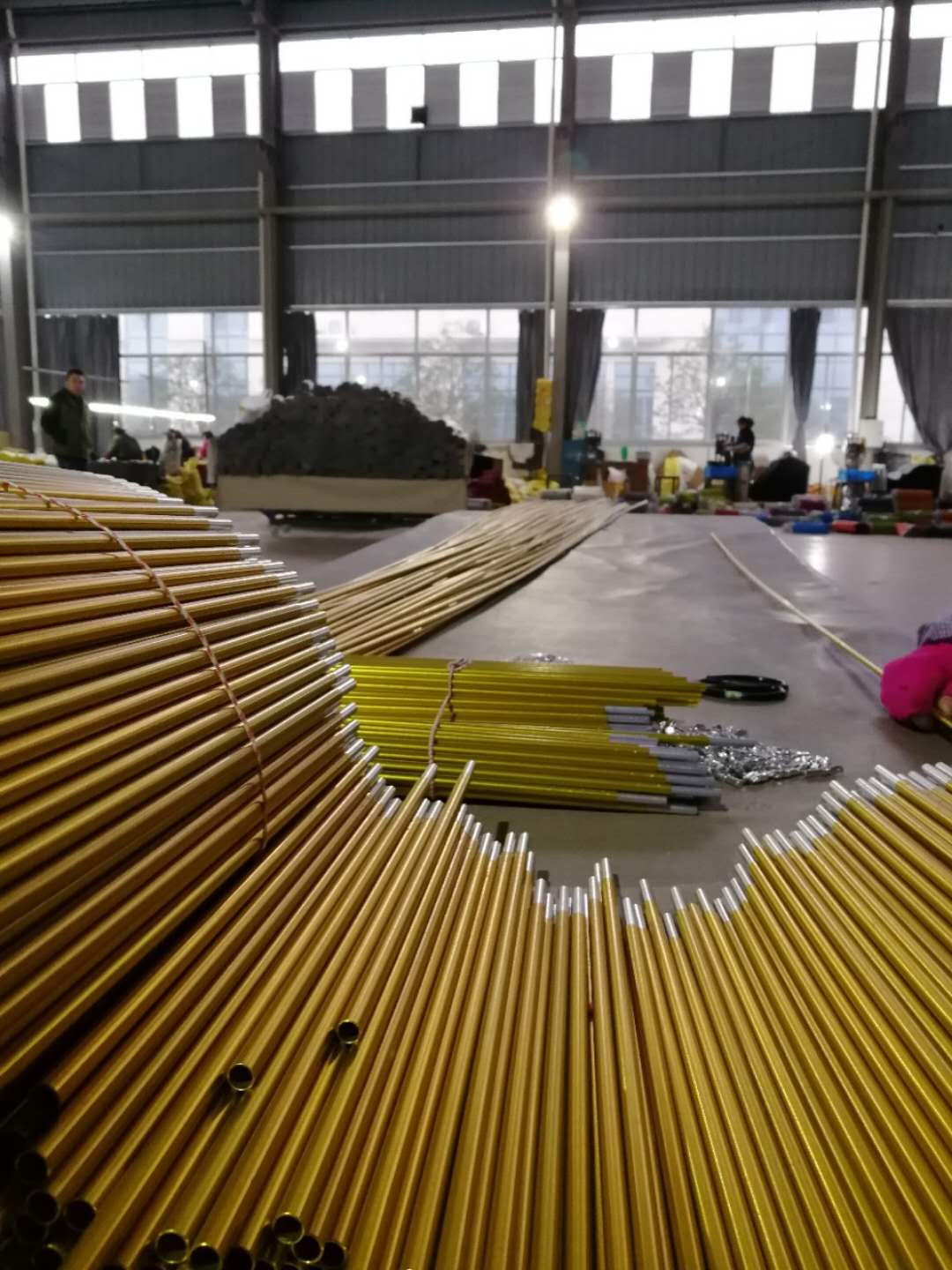

Chalco Aluminum specializing in the production of tent aluminium tent poles tubes  stakes fittings professional factory, mainly engaged in the production and sales of aluminum tent poles tubes, tent aluminium floor stakes nail, outdoor backpack aluminium backpack system, is the largest and most complete tent aluminium floor stakes factory in China. It is the most complete production plant of aluminum parts for tents in China. It has many extruders, thermal furnaces and stamping equipment for aluminum materials. Its main products are tent supporting aluminum poles tubes 7001-T6 and 7075-T9, which are supported by many world famous brands, such as SALEWA, NOME and so on. It is also widely known in national brands, such as Acme, Kellerstone, Pathfinder, and aluminum tent poles tubes in all directions. Figure. The main performances of the products pass SGS, Tianxiang, TTR, European Union chemical testing standards. Chalco Aluminum's aluminum tent stakes is by far the largest and most complete production line in China.



Alloy Temper Specs
Wall thickness (mm) OD (mm) Tension strength(MPa) Hardness
7075 7001 T5,T6,T9 > 0.5 5.0-80 > 310 Mpa > 140
Length: <6 m

Temper Wall thickness (mm) Tension strength (MPa) Elongation % Standard
T5 0.4-05 60--100 ≥ 20 GB/T3190-1996
T6 0.5-6 70---120 ≥ 4
T9 0.5-6 85---120 ≥ 2



Alloy
Temper
OD*Wall thickness
(mm)
Tensile strength
(MPa)
Yield Strength
(MPa)
Hardness
(MPa)
Elongation
(%)
7001 T6 6.9 × 0.72 600--650 ≧580 ≧18 5%--8%
7001 T6 7.9 × 0.72 600--650 ≧580 ≧18 5%--8%
7001 T6 8.5 × 0.72 600--650 ≧580 ≧18 5%--8%
7001 T6 9.5 × 0.72 600--650 ≧580 ≧18 5%--8%
7001 T6 11 × 0.75 600--650 ≧580 ≧18 5%--8%
7001 T6 13 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 14 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 16 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 18 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 19 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 20 × 1.0 600--650 ≧580 ≧18 5%--8%
7001 T6 22 × 1.0 600--650 ≧580 ≧18 5%--8%





Aluminum tent poles tubes specs 7001 7075 Aluminum tent poles tubes(mm)
OD 6.9 7.9 8.5 9.0 9.5 11 13 14 16 18 19 20 22
Wall thickness 0.7 0.7 0.7 0.7 0.7 0.75 1.0 1.0 1.0 1.0 1.0 1.0 1.0

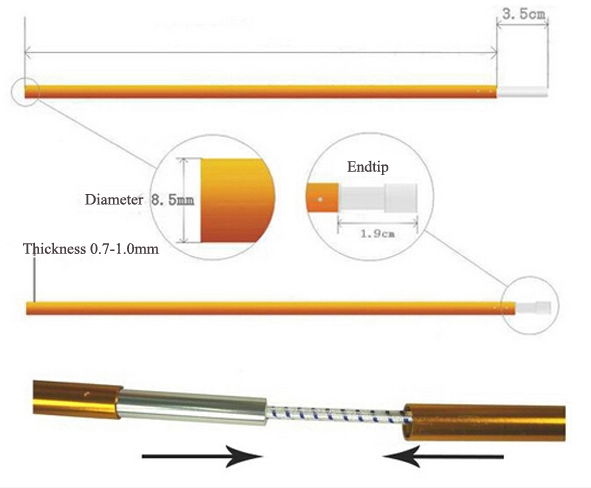

Aluminum tent pole with endtip


Poles and Accessories

A. Poles:
Each section should fit together with a male and female 50mm joint, made with a 100mm long inserted pipe crimped into one of the pipes(not to be made with press-reduced pipe diameter). Type of aluminum: 7001 T6

The poles/pole-ends are inserted into metal foot plates on each side and corner of the tent. Foot plates need to have a webbing loop that is large enough to insert one man foot, which makes the setup easier.

B. Cross arch pipes (two units)

Two aluminum pipes with a minimum 19mm outer diameter and a minimum 1mm wall thickness, in 11 pieces, pre-bended and linked with a cold-resistant inner elastic system.



Length: 8460mm, color: dark grey, black, golden etc.

The end of the pipe must be closed with an aluminum plug. 10mm Ø pin with 13mm Ø tip, that fits into the foot plate and offers attachment for the inner elastic systems. The plug has one end that fits into the foot plates(15mm Ø holes).

C. Cross arch centre pipe(one unit)

One aluminum pipe with a minimum 19mm outer diameter and a minimum 1mm wall thickness, in nine pieces, pre-bended and linked with a cold-resistant inner elastic system.

Length: 7230mm, color: orange.
he end of the pipe must be closed with an aluminum plug. 10mm Ø pin with 13mm Ø tip, that fits into the foot plate and offers attachment for the inner elastic systems. The plug has one end that fits into the foot plates(15mm Ø holes).

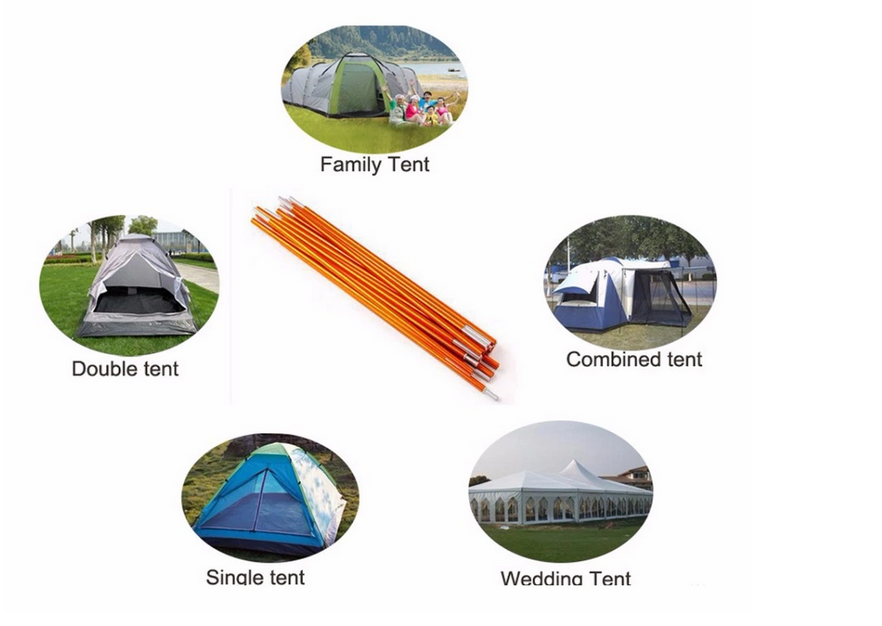

Application:
Chalco Aluminum has extensive experience in manufacturing aluminium seamless tubes for camping tent poles and military tents, such aluminum poles are also used in bicycles poles, skiing poles, baseball bats, crutches, etc.
IMG_256



Application
