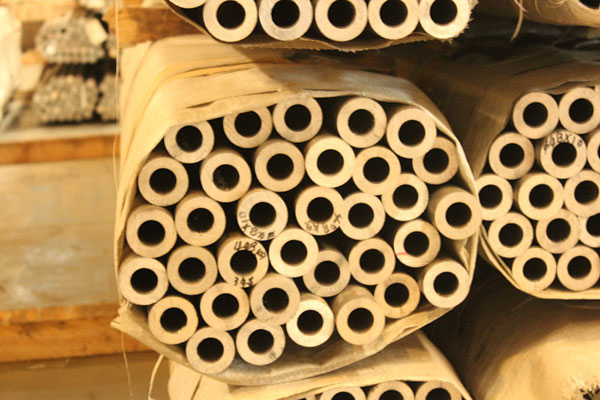

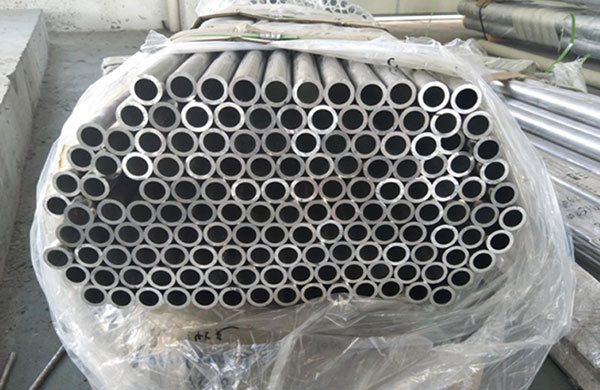

5056 5052 6061 Aluminum seamless pipe for camera frame

Chalco aluminum is applying indirect extrusion, the production technique is superior to the ordinary extruding machine, may guarantee no weld line after the oxidation, which is widely applied in the camera, the microscope, the telescope and the instrument frame.




The Aluminum seamless pipe for camera frame, has good machining performance, anodized color uniformity is excellent as well.



Alloy temper:
5056 5052 H111, H112 for SLR cameras.
6061 T6 used for vehicle lenses, microscopes, telescopes etc.
Material characteristics:
The technique indirect of extrusion;
No welding line;
Cutting performance good;
Anodizing uniform color good;
Smooth surface;
Corrosion resistance;

Specification:
Alloy: 5052 5056 6061
Temper: H112、H111、T6
OD: 3--130mm
ID: 3--100mm
Length: 1000mm--6000mm

Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 - 0.10 - - - 0.15 Remainder
5056 0.3 0.4 0.1 0.05-0.20 4.5-5.6 0.05-0.20 - 0.10 - - - 0.15 Remainder
6061 0.40-0.80 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 - - 0.1 0.15 Remainder

Physical Property
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
5052

O All 170 ~240 70 15 17
H112 All 170 70 13 15
F All - - - -
6061 O all 170 105 16 14
T1 ≤16.00 260 240 8 -
T42 all 180 85 16 14
T62 ≤6.30 260 240 8 -
>6.30 260 240 10 9
T4、T4510、T4511 all 180 110 16 14
T51 ≤16.00 240 205 8 7
T6、T6510、T6511 ≤6.30 260 240 8 -
>6.30 260 240 10 9
F all - - -- -
