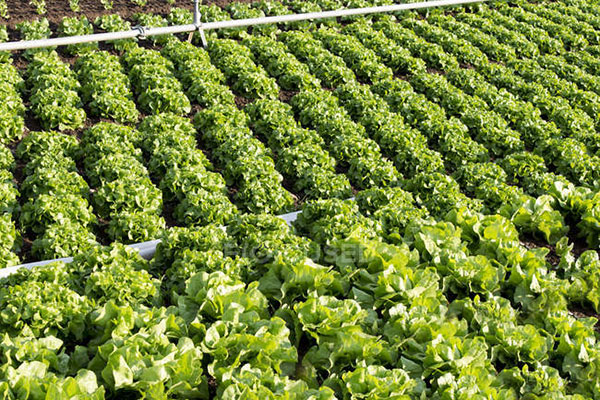

Aluminum pipe tube has been used in the irrigation industry for over fifty years. Its low density, good strength, and corrosion resistance make it an excellent choice for a variety of tube and joint applications.
Chalco latch style aluminum irrigation pipe is a light weight, easy to move solidset pipeline for handmove applications. It is most comonly used across a variety of agricultural irrigation, construction prewet, effluent spray fields, revegetation projects and temporary fire protection systems.
Features: Welded latch pad with positive alignment
Srping-loaded latch style connection with secure alignment.
Heavy ended pipe for extra durability.
Specs:
Standard pipe length are 30 and 40 feet, with custom fabricated length available.
Couplers rated at 80 psi working pressure
Pipe aluminum alloy: 3004-H26
Fitting aluminum alloy: A356
Pipe ends are bullnosed and reinforced with a 6” press-fit sleeve
No-Latch alunimum fittings are welded to the pipe
|

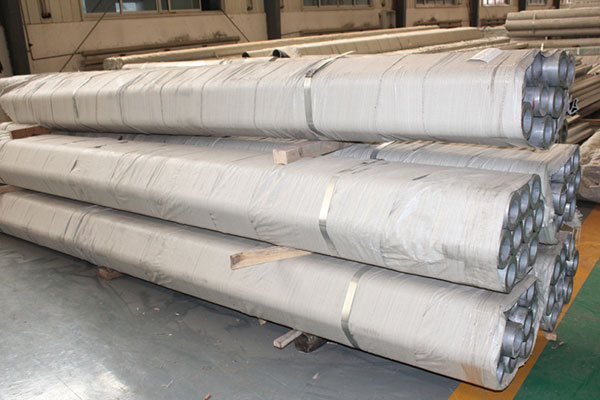

Chemical Composition of 3003 3A21 Aluminum Tube Pipe |
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ca |
V |
Ti |
Other |
Min.A1 |
|
3004 |
0.3 |
0.7 |
0.25 |
1.0-1.5 |
0.8-1.3 |
- |
- |
0.25 |
- |
- |
- |
0.15 |
Remainder |
|
Physical Property of 3003 3A21 Aluminum Tube Pipe |
|
Alloy |
Temper |
Wall thickness
/mm |
Room temperature Test Result |
|
Tension Strength/MPa |
Yield Strength/MPa |
Elongation/% |
|
A50mm |
A |
|
Not less than |
|
3004 |
O |
All |
95 ~ 130 |
35 |
25 |
22 |
|
H112 |
≤1.60 |
95 |
35 |
－ |
－ |
|
>1.60 |
95 |
35 |
25 |
22 |
|
F |
All |
－ |
－ |
－ |
－ |
