5083 5086 5383 5059 6061 6082 6005A Marine Grade aluminum pipe

Chalco Aluminum’s marine grade aluminum pipe could prevents rust and system deterioration, eliminates corrosion from entering production equipment, zero corrosion eliminates expensive production downtime and dramatically reduces maintenance cost, smooth internal diameter of tube maintained throughout life of system, ensure lowest cost of ownership of any piping system available.





Chalco Aluminum’ marine grade aluminum pipe is used for construction of T-tops, tuna towers, leaning posts, poling platforms, bow rails, ski arches and other marine metal structures. The unique properties of the pipe allows the fabricators to achieve desired bends and welding while maintaining strength, stability, and quality appearance.





Features:
* premium anodized aluminum marine grade aluminum pipe
*Ideal for interior and exterior use
*Extruded to close tolerance
*Heavy duty ideal for towers

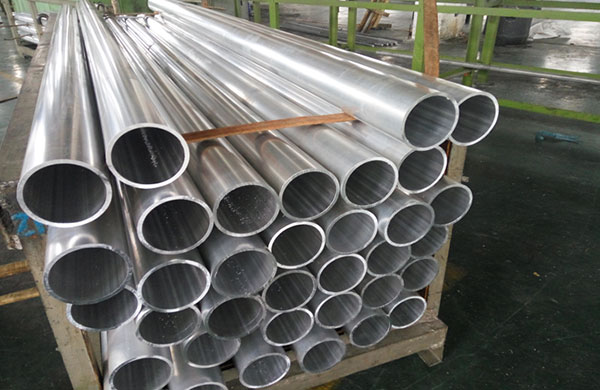

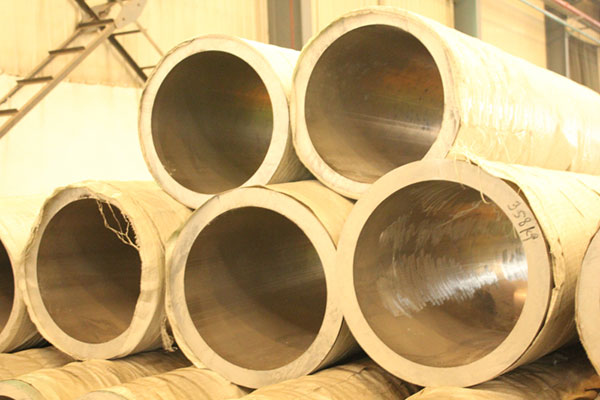

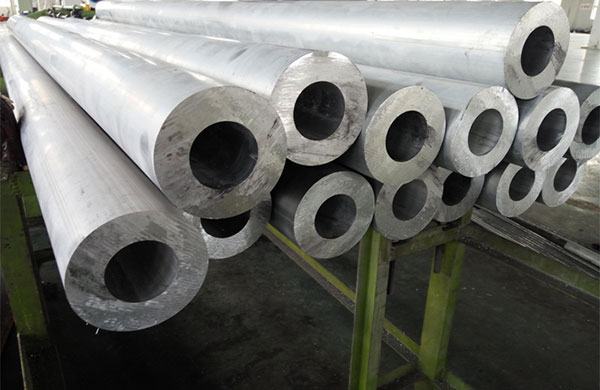

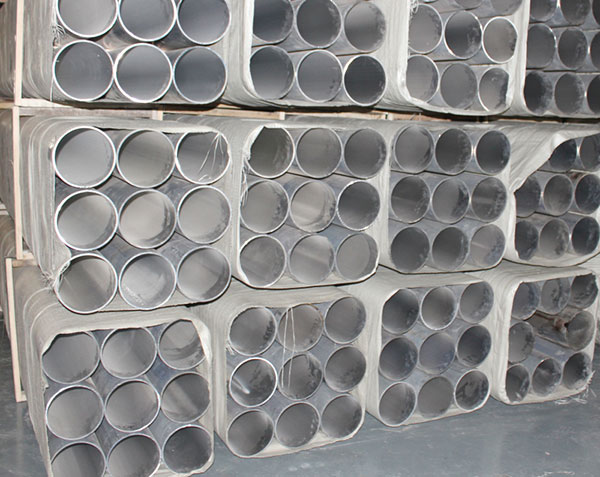

Specification of Marine grade aluminum round tube pipe:

Alloy:  5083, 5086,5383, 5059, 6061, 6082, 6005A
Temper: H111/H112, T5/T6
Certificate: BV /DNV /ABS/Lioyds
Wall thickness: 3mm---50mm

Marine Aluminum Round Tube Aluminum Alloys Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga Others Alu
Each Toal
5083 0.40 0.40 0.1 0.4-1.0 4.0--4.9 0.05--0.25 -- 0.25 0.15 -- 0.05 0.15 Remainder
5383 0.25 0.25 0.20 0.7-1.0 4.0-5.2 0.25 -- 0.40 0.15 -- 0.05 0.15 Remainder
5086 0.40 0.50 0.1 0.2--0.7 3.5-4.5 0.05-0.25 - 0.25 0.15 - 0.05 0.15 Remainder
5059 0.45 0.50 0.25 0.6-1.2 5.0-6.0 0.25 - 0.40-0.9 0.20 - 0.05 0.15 Remainder
6061 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 0.15 - 0.05 0.15 Remainder
6005A 0.50-0.9 0.35 0.30 0.50 0.40-0.7 0.30 - 0.20 0.10 - 0.05 0.15 Remainder
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.20 0.10 - 0.05 0.15 Remainder

Mechanical Properties of Marine Aluminum Round Tube
Alloy Form Thickness(mm) Temper Rm Rp0.2
(Mpa)
A% Min
Min.   A₅₀ A
5086 Shapes, Bar, Tube 3≤t≤50 H112 240 95 10 12
5083 Shapes, Bar, Tube Shapes, Bar, Tube 3≤t≤50 3≤t≤50 H111
O and H112
270  270 110     125 10    10 12     12
5059 Shapes, Bar, Tube 3≤t≤50 H112 330 200   10
5383 Shapes, Bar, Tub 3≤t≤50 O 290 145 17 17
Shapes, Bar, Tub 3≤t≤50 H112 310 190   13
6061 Shapes, Bar, Tube Profiles 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
260   245 240    205 10 8       4
6005A Shapes, Bar, Tube Profiles 3≤t≤50 T5 260 215 9 8
Shapes, Bar, Tube Profiles 3≤t≤10 T6 260 215 8 6
10≤t≤50 250 200 8 6
6082 Shapes, Bar, Tube Closed shapes 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
310     290 260    240 10 8       5
