Round aluminum tube pipe
2023-07-07 08:45:09

The chalco produce high-precision hard round aluminium tube pipe, used for aviation, spaceflight, petroleum, military industry, new energy, heavy industry of particular territory.

Round Aluminum tube pipe is a kind of non-ferrous metal tube, refers to the use of pure aluminum or aluminum alloy extruded into a hollow metal tubular material along its longitudinal full length.

Round aluminium tube pipe
Mould No.	O.D.（mm)	Wall Thickness(mm)	Line Density Kg/m	Extrusion Capacity	Alloy Temper
BRZ-D0002	7.54	1.5	0.077	500	6060-T5
BRZ_D0004	7.93	1	0.059	500	6063-T5
BRZ_D0005	7.94	1.5	0.082	500	6063-T5
CHALCO_A000014	8	1	0.059	500	6060-T5
CHALCO_A000949	8	2	0.102	500	6060-T66
CHALCOGYC-1820	9	1.2	0.079	500T	6063-T5
PCA_D009329	9.52	1.65	0.11	500	6061-T6511
PCA_D006733	9.525	1.47	0.101	500	6061-T6
PCA_D000061	9.53	1.24	0.087
ALD_D000401	10	1.6	0.09	500	6060-T5
ALD_D000472	10	1.6	0.114	500	6060-T5
CHALCO_A000015	10	1	0.076	500	6060-T5
CHALCO_A000298	10	1	0.093	500	6060-T5
CHALCO_A000592	10	2	0.136	500	6060-T66
CHALCO_A001274	10	1.5	0.108	500	6063-T5
CHALCOGYC-1387	10	2.6	0.163	500	6063-T5
ALD_D001193	12	1.6	0.141	500	6060-T5
CHALCO_A000016	12	1	0.093	500	6060-T5
CHALCO_A000524	12	2	0.17	500	6060-T6
CHD_A000286	12	1.5	0.134	500	6060-T66
PCA_D004588	12.7	1.47	0.141
PCA_D004837	12.7	1.52	0.144	500	6063-T6
PCA_D009278	12.7	1.24	0.121	500	6063-T5
CHALCO_A000905	12.7	1.63	0.153	500	6063-T6
CHALCOGYC-1452	12.7	1.2﹢0﹣0.5	0.117	500	6061-T6
CHALCO_D040229	12.7	1	0.099	500
CHALCO_A000470	13	1.5	0.146	500	6060-T66
CHD_A000276	13	2	0.187	500	6060-T66
CHALCOGYC-1484	13.6	4.3	0.339	660	6061-T6
CHALCO_A000471	14	2	0.204	500	6060-T66
XSS-283	14.3	1	0.113	500T
JTV-037	15	1	0.119	500T
CHALCO_A000348	15	1.5	0.172	500	6060-T6
CHALCO_A000437	15	2	0.221	500	6060-T66
CHALCOGYC-1299	15	1	0.119	500	6061-T6
CHD_A000233	15	2	0.221	500T	6060-T66
KLYL-X253-10729	15	2	0.221	500
CHD_A000233	15	2	0.221	500T	6060-T66
PCA_D004838	15.875	1.52	0.186	500	6063-T6
CHALCO_D040184	15.875	1	0.126	500
ALD_D000512	15.88	1.6	0.149	500	6106-T6
ALD_D002609	15.88	1.2	0.149	500	6063-T6
ALD_D002610	15.88	1.42	0.174	500	6063-T6
CHALCOGYC-1453	15.88	1.2﹢0﹣0.5	0.149	500	6061-T6
ALD_D000511	16	1.6	0.195	500	6106-T6
ALD_D000711	16	1.2	0.151	500	6060-T5
ALD_D000828	16	1.6	0.195	500	6060-T5
CHALCO_A000236	16	2	0.238	500	6060-T6
CHALCO_A000661	16	1.5	0.184	500	-
CHALCO_A000777	16	3.75	0.39	660T	6060-T6
CHALCO_A000802	16	2.5	0.286	500	6060-T6
CHALCOGYC-1494	16	3	0.331	660
ALD_D003982	16	1.3	0.162	500T
CHALCOGYC-1549	16	6	0.509	660T	6061-T6
CHD_A000211	16	4	0.407	660T	6060-T66
XSS-416	16	1.1	0.139	500T	6063-T5
XSS-416	16	1.1	0.139	500T	6063-T5
CHALCO_A000438	18	2	0.271	500	6060-T66
CHALCO_A000648	18	1.5	0.21	500	-
CHALCOGYC-1414	18	1	0.144	500	6063
CHALCOGYC-1493	18	3.25	0.407	660
ALD_D000556	19	1.2	0.181	500	6060-T5
CHALCO_A000116	19	1.5	0.261	500	6060-T5
ZXCJ-04	19	1.8	0.263	660T	6061-F
ALD_D003990	19	1.2	0.181	500T	6060
ALD_D003990	19	1.2	0.181	500T	6060-T6
CHALCODX-150	19	1.5	0.223	500T	3A21-0
XSS-011A	19	2.2	0.314	660	6063-T5
PCA_D000224	19.05	1.65	0.244
PCA_D001877	19.05	3.18	0.427
PCA_D002428	19.05	1.24	0.189
PCA_D002429	19.05	3.05	0.414	660T	6061-T6
PCA-D001877	19.05	3.18	0.428	660T	6061-T6
CHALCO_A000837	19.05	1.63	0.24	500	6082-T6
CHALCO_A000862	19.05	1.63	0.24
CHALCO_A001021	19.05	2.03	0.293	500	6082-T6
CHALCOGYC-1454	19.05	1.45﹢0﹣0.5	0.216	500	6061-T6
CHALCO_D040186	19.05	1	0.153	500
ALD_D000557	20	1.6	0.25	500	6060-T5
DC200-002	20	3	0.433	660T	6060-T4
CHALCO_A000237	20	2	0.305	660T	6061-T6
CHALCO_A000414	20	2.5	0.371	660T	6060-T66
CHALCO_A000472	20	1.5	0.235	500	6060-T66
CHALCO_A000473	20	5	0.636	660T
CHALCO_A000649	20	3	0.433	660T
ALD_D003986	20	1.2	0.191	500T
CHALCOGYC-1716	20	1	0.161	500
PCA_D003136	20.269	2.997	0.439	660T	6061-T4
CHALCOGYC-1257	20.35	6.28	0.749	880	6061-T6
XSS-440	21	1.8	0.293	500T	6063-T5
PCA_D000217	21.34	2.77	0.435
PCA_D008587	21.34	3.73	0.557	660T	6061-T6
ANA_D0013	21.46	3.81	0.571	660T	6061-T651
ALD_D002624	21.5	1.5	0.253	500	6463-T5
XSS-537	21.7	2	0.334	660	6063-T5
XSS-454	21.8	1.6	0.274	500T	6063-T5
CHALCO_A000439	22	2.5	0.414	660T	6060-T66
CHALCO_A000911	22	1.5	0.261	500	6060-T66
XSS-127	22	1.6	0.277	500	6063-T5
CHALCODX-038	22	1.5	0.261
CHALCOGYC-1271C	22	1.7	0.293	500	6063-T5
CHALCOGYC-1388	22	2	0.339	660	6063-T5
CHALCOGYC-1752	22	1.6	0.277	500
XSS-441	22	1.8	0.308	660T	6063-T5
CHALCOGYC-528	22.1	2.4	0.401	660T	6061
CHALCOGYC-529	22.1	2	0.341	660T	6061
ZXCJ-03	22.2	1.8	0.311	660T	6061-F
PCA_D001210	22.22	1.25	0.221	500	6061-T6
PCA_D008437	22.22	1.65	0.288	660T
CHALCO_D040185	22.225	1	0.18	500
PCA_D005774	22.23	3.18	0.513	660T
CHALCOGYC-1455	22.23	1.45﹢0﹣0.5	0.256	500	6061-T6
PCA_D003135	23.571	2.921	0.512	660T	6061-T4
CHALCO_A000504	24	2	0.373	660T	6060-T66
TA_D001496	24.13	3.81	0.657	880
KLYL-V212-DS112	24.8	3.4	0.617	660
XSS-482	24.8	4.1	0.404	660
ALD_D000626	25	1.6	0.318	660T	6463-T5
ALD_D003187	25	1.2	0.242	500	6063-T5
SFM17-039XC	25	3	0.56	880	6005A-T6
CHALCO_A000049	25	2	0.39	660T	6060-T66
CHALCO_A000288	25	3	0.56	660T	6060-T66
CHALCO_A000440	25	1.5	0.299
CHALCO_A000441	25	5	0.848	880T
CHALCO_A000474	25	2.5	0.477	500	6060-T66
CHALCO_A000803	25	1	0.204	500	6060-T6
XSS-282	25	1.8	0.354	660T
CHALCOGYC-1639	25	3.5	0.638	880
XSS-417	25	1.2	0.242	500T	6063-T5
KLYL-BMW-6756	25	2.2	0.425	660
KLYL-BMW35-5074	25	2	0.39	660
XSS-417	25	1.2	0.242	500T	6063-T5
CHALCOGYC-2073	25	2.2	0.425	660	6061-T6
AUS_D000793	25.4	1	0.207
LZP_D000002	25.4	1.65	0.333	660T
PCA_D000147	25.4	3.99	0.724
PCA_D000148	25.4	3.95	0.72
PCA_D000149	25.4	3.87	0.707
PCA_D000225	25.4	1.65	0.333	660T	6061-T6
PCA_D000974	25.4	3.05	0.578	880T
PCA_D000986	25.4	3.18	0.599
PCA_D002008	25.4	1.47	0.299
PCA_D002009	25.4	2.77	0.531	660T
PCA_D002652	25.4	6.35	1.026	880T
PCA_D002875	25.4	1.24	0.255	500	6061-T6
PCA_D004123	25.4	0.89	0.185	500	6063-T6
PCA_D004665	25.4	1.57	0.318	660T
PCA_D005272	25.4	2.11	0.417	660T	6061-T6
PCA_D006196	25.4	2.77	0.531	660T
CHALCO_A000705	25.4	3.25	0.611	880T	6082
CHALCO_A000779	25.4	1.22	0.25
CHALCO_A000839	25.4	1.63	0.328	660T	6082-T6
CHALCOGYC-1456	25.4	1.2﹢0﹣0.5	0.246	500	6061-T6
CHALCOGYC-1457	25.4	1.45﹢0﹣0.5	0.295	500	6061-T6
CHALCO_D030237	25.4	2.5	0.486	660
CHALCO_D040230	25.4	1	0.207	500
CHALCOGYC-1637	25.8	3.9	0.724	880
CHALCOGYC-1638	25.9	1.3	0.271	660
XSS-163	26	3	0.585	660T	6063-T5
CHALCOGYC-2041	26	1.5	0.312	660	6063-T5
CHALCOGYC-2044	26	2	0.407	660	6063-T5
PCA_D000557	26.67	2.87	0.58
PCA_D000829	26.67	2.87	0.58
PCA_D003184	26.6954	2.7427	0.557	660T
B753.1.0-6	27	9	1.374	1250	6351-T6
CHALCOGYC-1899	27	1.2	0.263	500T	6063-F
JTV-039	27.4	6	1.093	880T
CHALCOGYC-1495	27.5	2.1	0.452	660
CHALCOGYC-2238	27.6	3.8	0.767	880	1060-H112
XSS-186	27.8	2.1	0.458	660T
CHALCO_A000823	28	1.5	0.337	660T	6060-T66
CHALCO_A000974	28	2	0.441	660T	6060-T66
SZGYC-075	28	1	0.229
XSS-164	28	3.5	0.727	880	6063-T5
CHALCOGYC-1389	28	2.5	0.541	660	6063-T5
CHALCOGYC-956	28	1.7	0.379	880T	LF21-F
CHALCOGYC-2042	28	1.5	0.337	660	6063-T5
CHALCOGYC-2043	28	2	0.441	660	6063-T5
CHALCOGYC-2179	28	1.5	0.337	660	6063-T5
XSS-130	28.2	1.8	0.403	660T	6063-T5
PCA_D004657	28.57	1.6	0.366	660T
CHALCOGYC-935	28.58	1.8	0.409	660T	6082-T6
CHALCOGYC-1458	28.58	1.45﹢0﹣0.5	0.334	660	6061-T6
PCA_D002430	28.6	1.24	0.289	660T	6061-T6
CHALCOGYC-1153	28.6	1.4	0.323	660	6063
ADC1009751G030	30	3	0.687	880	6082-T6
CHALCO_A000238	30	3	0.687	880T
CHALCO_A000267	30	2	0.475	660T	6060-T66
CHALCO_A000462	30	4	0.882	880T
CHALCO_A000846	30	5	1.06	880T
CHALCO_A000921	30	7.5	1.431	1250T
CHALCO_A001209	30	2.5	0.583
KLYL-V205-5708	30	1.6	0.385	660
CHALCODX-155	30	2	0.475	660	6082-T66
PCA_D000062	31.75	3.05	0.741
PCA_D000226	31.75	3.18	0.769
PCA_D000227	31.75	1.65	0.421
PCA_D002661	31.75	2.11	0.53	660T	6061-T6
PCA_D004589	31.75	6.35	1.368	1250T
PCA_D009029	31.75	0.89	0.233	500	6063-T5
CHALCO_A000706	31.75	2.64	0.652	880T	6082
CHALCO_A000781	31.75	1.22	0.316	660T
CHALCO_A000833	31.75	3.25	0.786	880T	6082
CHALCO_A000838	31.75	1.63	0.415	660T	6082-T6
CHALCOGYC-1459	31.75	1.2﹢0﹣0.5	0.311	660	6061-T6
CHALCOGYC-1460	31.75	1.45﹢0﹣0.5	0.373	660	6061-T6
CHALCO_D040187	31.75	1	0.261	500
CHALCO_D040234	31.75	1.1	0.286	500	6063-T5
CCD00000004618	32	1.5	0.388	660T
CHALCO_A000475	32	3	0.738	880T
CHALCO_AOOO349	32	2	0.509	660T	6060-T6
TX3.1.0-9	32	11.5	2	1250T	6351
CHALCOGYC-1234	32	1.9	0.485	880	6063-O
CHALCOGYC-65	32	7	1.484
CHALCOGYC-78	32	7	1.484
CHALCOGYC-2149	32	1.5	0.388	660	6063-T5
CHALCO_A000910	33	6.5	1.461	1250T
PCA_D000558	33.4	3.38	0.86
PCA_D001016	33.4	4.55	1.113
PCA_D004755	33.4	3.43	0.872
PCA_D003186	33.65	3.11	0.806	880T
CHALCOGYC-1906	33.8	9.95	2.013	1800	6061-T6
PCA_D003239	34	1.5	0.414	660T
KLYL-BMW35-5073	34	8.05	1.772	500
KLYL-W204-43834	34	7.3	1.653	1250
PCA_D006732	34.925	1.47	0.418	660T	6061-T6
CHALCO_A000870	34.925	3.25	0.873	880T	6082
PCA_D001661	34.93	1.57	0.445	660T
SFM17-050XC	35	3	0.814	880	6005A-T6
CHALCO_A000242	35	2	0.56	660T	6060-T6
CHALCO_A000415	35	2.5	0.689	880T
CHALCO_A000442	35	5	1.272	1250T
CHALCO_A000755	35	3	0.814	880T
CHALCO_A000913	35	1.5	0.426	660T	6060-T6
SZGYC-074	35	1	0.288
CHALCO_D030178	35.5	1.2	0.349	660T	6082-T6
CHALCOGYC-1770	35.6	4.8	1.254	1250T	1060-H112
CHALCO_A000680	36	4	1.086	880T
CHALCOGYC-2150	36	1.3	0.383	660	6063-T5
TA_D001470	36.93	5.33	1.43	1250
ALD_D000558	38	4.5	1.279	1250T
ALD_D003580	38	2	0.611	880T
CHALCO_A000600	38	3	0.891	880T
TP-1627	38	1.2	0.375	660T
CHALCOGYC-1308	38	2	0.611	880	6005-T5
CHALCOGYC-862	38	2.5	0.753	880T	7003-T5
CHALCOGYC-1696	38	1.7	0.523	880T
ALD_D000559	38.1	3.2	0.947	1250T
PCA_D000063	38.1	3.05	0.905
PCA_D000228	38.1	1.65	0.511
PCA_D000229	38.1	3.18	0.94
PCA_D000423	38.1	1.57	0.488	880T
PCA_D002492	38.1	6.35	1.71	1250T
PCA_D004322	38.1	4.78	1.35	1250T
PCA_D004345	38.1	2.18	0.665
PCA_D004469	38.1	2.11	0.643
PCA_DOO2011	38.1	2.11	0.644	880T
CHALCO_A000707	38.1	3.25	0.961	880T	6082
CHALCO_A000871	38.1	4.76	1.347	1250T
ZXCJ-01	38.1	1.8	0.554	880	6061-F
CHALCOGYC-1461	38.1	1.45﹢0﹣0.5	0.451	660	6061-T6
CHALCO_D040188	38.1	1	0.315	660
CHALCO_D040233	38.1	1.2	0.376	660	6063-T5
CHALCOXC-235	38.6	1.5	0.472	660T	1060
CHALCOXC-235A	38.95	1.5	0.476	660T	1060
DC00005749G00	40	5	1.484	1250T
CHALCO_A000239	40	3	0.942	880T
CHALCO_A000245	40	2	0.645	880T
CHALCO_A000246	40	5	1.484	1250T
CHALCO_A000344	40	1.5	0.49	660T	6060-T6
CHALCO_A000416	40	4	1.221	1250T
CHALCO_A000476	40	6	1.73	1250T
CHALCO_A000650	40	10	2.545	1250T
CHALCO_A001114	40	2.5	0.795	880T
XSS-140	40	1.8	0.583	660T	6063-T5
XSS-140	40	1.8	0.583	660T	6063-T5
XSS-377	40	2.75	0.869	880
XSS-452	40	2.3	0.736	880T	6063-T5
CHALCOGYC-2151	40	1.3	0.427	660	6063-T5
PCA_D000830	40.64	3.18	1.008
CHALCO_A000257	42	4	1.289	1250T
CHALCO_A000443	42	2	0.679	880T
CHALCO_A000554	42	5	1.569	1250T
CHALCOGYC-2060	42	3.5	1.143	880	6061-T6
PCA_D000220	42.16	3.56	1.165	1250T
PCA_D005728	42.16	4.85	1.535	1250T
CHALCOGYC-1771	43	5	1.612	1250T	1060-H112
CHALCOGYC-2057	43	5	1.612	1250	1060-H112
CHALCOGYC-1068	43.5	3	1.031	1250T
CHALCOGYC-1496	44	10	2.884	2000
CHALCOGYC-2152	44	1.3	0.471	660	6063-T5
PCA_D000230	44.45	3.18	1.111
PCA_D000976	44.45	6.35	2.052
PCA_D004097	44.45	1.24	0.456	660T
CHALCO_A000708	44.45	3.25	1.136	1250T
CHALCO_A000872	44.45	4.76	1.603	1250T
CHALCOGYC-1462	44.45	1.45﹢0﹣0.5	0.529	660	6061-T6
ALD_D000560	44.5	3.2	1.121	1250T
CHALCO_A000505	45	3	1.069	880T
CHALCO_A000583	45	2	0.729
CHALCO_A000681	45	4	1.391	1250T
CHALCO_AOOO583	45	2	0.729	880T
CHALCOGYC-931	45.8	4	1.418	1250T
DL-SSA-404A	46	6	2.036	1250T
XSS-378	46	2.8	1.026	880
CHALCO_D030179	46.1	1.6	0.604	880T	6082-T6
CHALCOGYC-1811	46.2	1.1	0.421	660T	6063-T5
ALD_D001018	48	3.25	1.234	1250T
CHALCO_A000477	48	3	1.145	1250T
CHALCO_A000526	48	4	1.493	1250T
CHALCOGYC-2153	48	1.3	0.515	660	6063-T5
PCA_D000221	48.26	3.68	1.392
PCA_D001017	48.26	5.08	1.86
PCA_D001791	48.26	1.57	0.624
ALD_D000402	48.4	4.47	1.666	1250T
ALD_D000561	48.4	4.5	1.676	1250T
CHALCO_A000709	48.42	4.47	1.666	1250T
PCA_D007181	49.78	3.175	1.255	1250T
ALD_D000562	50	1.6	0.657	880T
CCD00000004623	50	2.5	1.007	1250T
DC00001758G00	50	2	0.814	1250T
DC00005750G00	50	5	1.909	2000T	6082-T6
CHALCO_A000243	50	1.5	0.617	880T
CHALCO_A000249	50	5	1.909	1250T
CHALCO_A000251	50	3	1.196	1250T
CHALCO_A000252	50	2	0.814	880T
CHALCO_A000256	50	4	1.561	1250T
CHALCO_A000522	50	2.5	1.007	880T
CHALCO_A000651	50	10	3.393	1250T
CHALCO_A001048	50	3.2	1.27	1250T
XSS-022	50	1.9	0.775	880	6061-T6
XSS-023	50	2.7	1.083	1250	6061-T6
CHALCOGYC-1100	50	2.75	1.102	1250T
PCA_D000064	50.8	3.05	1.235
PCA_D000127	50.8	3.18	1.281
PCA_D000232	50.8	6.35	2.393
PCA_D000441	50.8	1.52	0.637
PCA_D001317	50.8	1.65	0.688
PCA_D001536	50.8	4.78	1.863
PCA_D002662	50.8	1.47	0.616	880T
PCA_D002670	50.8	0.89	0.376	660T
PCA-D000127	50.8	3.17	1.283	880T
PCA-D002184	50.8	3.17	1.283	880T
CHALCO_A000835	50.8	3.25	1.311	1250T
CHALCO_A000836	50.8	1.63	0.678	880T	6082
CHALCOGYC-910	50.8	2.5	1.024	880T	6082
CHALCOGYC-911	50.8	1.8	0.748	880T	6082
ZXCJ-02	50.8	1.8	0.748	880	6061-F
CHALCO_D040232	50.8	2	0.828	880	6063-T5
CHALCO_A000895	52	2.5	1.05	880T
CHALCOGYC-2154	52	1.3	0.559	660	6063-T5
CHALCOGYC-2224	52	2	0.848	880	3A21-F
CHALCO_D030160	53.98	1.54	0.685	880T	6063-T6
CHALCO_D030160	53.98	1.54	0.685	880T	6063-T6
ALD_D001871	54	0.91	0.41	660T
CAA_D008895	54	12	4.275	2000T
PCA_D008895	54	12	4.275	2000T
CHALCO_A000682	54	2	0.882	880T
CHALCO_A000506	55	5	2.121	1250T
CHALCO_A000528	55	2	0.899	880T
CHALCO_A000880	55	1.5	0.681	880T
CHALCOGYC-22	55	12.5	4.506	3150T
CHALCOGYC-45	55	12	4.377	2000T
CHALCOGYC-1772	56	2.25	1.026	1250T	6082-T6
CHALCOGYC-2155	56	1.3	0.603	880	6063-T5
XSS-137	57	3	1.374	1250	6063-T5
CHALCOGYC-2074	57	4	1.798	1250	6061-T6
PCA_D000135	57.15	1.65	0.776
PCA_D000233	57.15	6.35	2.735	3150T
CCD00000004628	60	3	1.45	1250T
DC00005752G00	60	8	3.529	2000T	6082-T6
CHALCO_A000240	60	3	1.45	1250T
CHALCO_A000248	60	2	0.984	880T
CHALCO_A000250	60	5	2.333	1250T

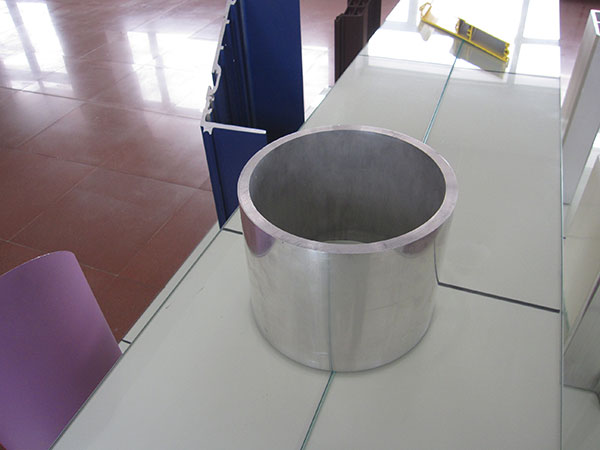

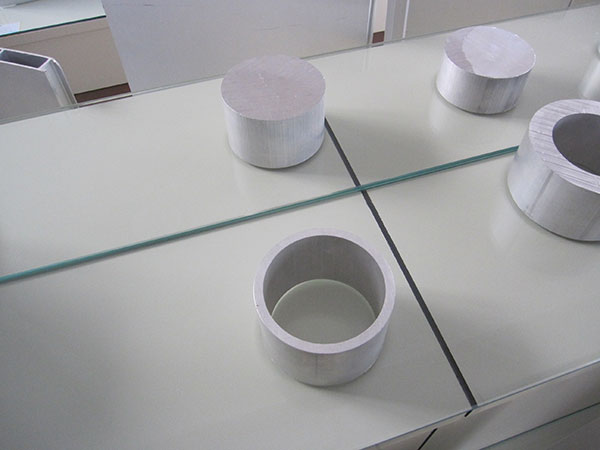

Round aluminium tube pipe2
Mould No.	O.D. （mm)	Wall Thickness (mm)	Line Density Kg/m	Extrusion Capacity	Alloy Temper
CHALCO_A000417	60	2.5	1.219	1250T
CHALCO_A000444	60	10	4.241	2000T	6060-T66
CHALCO_A000478	60	6	2.748	1250T
CHALCO_A000523	60	4	1.9	1250T
CHALCO_A001115	60	1.5	0.744	880T
CHALCOGYC-104	60	15	5.726	3150T
CHALCOGYC-2156	60	1.3	0.647	880	6063-T5
PCA_D000222	60.33	3.91	1.872
PCA_D001018	60.33	5.54	2.571	1250T
ALD_D002252	60.8	5	2.367	1800	6060-T5
CHALCO_D030220	63	1.63	0.849	880	6063-T4
ALD_D000510	63.5	3.25	1.661	1250T
ANA_D0008	63.5	3.18	1.625	1250T
PCA_D004381	63.5	3.18	1.625	1250T
PCA_D007145	63.5	3.05	1.563	1250T
CHALCO_A000906	63.5	1.63	0.853	880T
CHALCOXC-238A	64	16.5	6.648	3150T	6082-T6
CHALCOGYC-2157	64	1.3	0.691	880	6063-T5
CHALCO_A000418	65	5	2.545	1250T
CHALCO_A000662	65	2	1.069	1250T
CHALCO_A000981	65	2.5	1.325	1250T
CHALCO_A001689	65	10	4.665	2000T	6060-T66
PCA_D000136	65.3	1.65	0.866	880T
CHALCOGYC-2158	68	1.3	0.736	880	6063-T5
PCA_D000137	69.85	1.65	0.955	880T
PCA_D002663	69.85	3.18	1.796	1250T
DC00005751G00	70	10	5.089	3600	6082-T6
CHALCO_A000244	70	3	1.705	1250T
CHALCO_A000255	70	5	2.757	1250T
CHALCO_A000445	70	2	1.154	1250T
CHALCO_A000763	70	4	2.239	1250T
CHALCO_A000982	70	10	5.089	2000T	6060-T66
CHALCO_A001270	70	2.5	1.431	1250T
CHALCOGYC-2180	72.2	1.4	0.841	880	6063-T5
PCA_D000223	73.03	5.16	2.967	2000T
PCA_D004464	73.03	7.01	3.926	1800	6061-T6
CHALCO_A000480	75	2.5	1.537	1250T
CHALCO_A000527	75	5	2.969	1250T
ALD_D000563	76	6	3.563	3150T
CHALCO_A000241	76	3	1.858	1250T
CHALCO_A000751	76	4	2.443	1250T
CHALCO_A000987	76	3.5	2.152	1250T
CHALCO_A001047	76	3.2	1.976	1250T
CHALCOGYC-1274	76	5	3.011	2000T	6061-T6
ALD_D000500	76.2	3.25	2.011	2000T	6060-T4
ALD_D000509	76.2	4.75	2.879	2000T	6060-T1
ALD_D000564	76.2	4.7	2.85	1800	6060-T591
ALD_D001199	76.2	3.25	2.011	1800	6060-T1
PCA_D000138	76.2	1.65	1.044	1250T
PCA_D000977	76.2	6.35	3.761	2000T
PCA_D001241	76.2	3.18	1.966
CHALCO_A000907	76.2	3.25	2.012	1250T
CHALCO_A001343	76.2	1.5	0.95	1250T
CHALCO_D030221	76.2	1.63	1.031	1250	6063-T4
CHALCO_D040231	76.2	2	1.259	1250	6063-T5
CHALCOGYC-2181	76.2	1.4	0.888	880	6063-T5
SFM17-042XC	78	4	2.511	2750T	6005A-T6
CCD00000004609	80	3	1.959	2000T
CHALCO_A000247	80	3	1.959	1250T
CHALCO_A000345	80	5	3.181	1800	6060-T6
CHALCO_A000728	80	2	1.323	1250T
CHALCO_A000821	80	10	5.938	2000T	6060-T6
CHALCO_A001096	80	2.5	1.643	1250T
CHALCO_A001101	80	2	1.323	1250T
CHALCOGYC-103	80	15	8.27	3150T
CHALCOGYC-135	80	20	10.179	3150T
CHD_A000228	80	6	3.766	2000T	6060-T66
CHD_A000266	80	4	2.579	2000
CHD_A000267	80	17.5	9.278	1250
CHALCOGYC-1498	81	8	4.954	2000T
ALD_D002637	82	1.6	1.091	1250T
PCA_D000139	82.55	1.65	1.133	1250T
CHALCOXC-238B	84	20.5	11.042	3600T	6082-T6
ALD_D001185	84.5	1	0.708	1250T
CHALCO_A001308	85	5	3.393	3150T
CHALCOGYC-129	85	10	6.362	3150T
CHALCOGYC-130	85	20	11.027	3600T
CHALCO_A000446	86	3	2.112	1250T
PCA_D000145	88.9	1.65	1.222	1250T
PCA_D000690	88.9	5.49	3.882	2000T
PCA_D002262	88.9	7.62	5.254	2000T	6061-T6511
CHALCO_A001023	89	4.05	2.918	1800	6063-T66
CHALCOGYC-2061	89	6	4.224	2750	6061-T6
CCD00000004622	90	10	6.786	3600	6082-T6
CHALCO_A000050	90	5	3.605	1250T
CHALCO_A000447	90	3	2.214	1250T
CHALCO_A000881	90	2.5	1.856	1250T
CHALCO_A001269	90	10	6.786	3600T
CHALCO_A001269	90	10	6.786	3600	6063-T5
CHALCO_A001275	90	15	9.543	3600	6063-T5
CHALCOGYC-08	90	20	11.875	3600T
CHALCOGYC-1014	90	8	5.564	3150T	6A02
CHALCOGYC-829	90	6	4.275	3150T
CHALCOGYC-870	90	12.5	8.217	3600	6063-T6
CHALCOGYC-967	90	32	15.743	3150T
CHALCOGYC-102	92	14.5	9.532	3150T
CHALCOGYC-859	92	21	12.647	3150T
CHALCOGYC-1843	93	10	7.04	3600T Φ440X260	6063-T6
CHALCO_A000269	100	5	4.029	2000T	6060-T66
CHALCO_A000346	100	3	2.468	1250T
CHALCO_A000590	100	10	7.634	3600	6060-T66
CHALCO_A000591	100	2	1.663	1250T
CHALCO_A000912	100	20	13.572	3600	6063-T5
CHALCO_A001099	100	2	1.663	1800	6060-T66
CHALCOGYC-311	100	15	10.815	3600T
CHALCOGYC-367	100	8	6.243	3150T
CHALCOGYC-866	100	16	11.4	3600	-
CHALCOGYC-1868	100	6	4.784	2750T	6061-T6
PCA_D000140	101	1.65	1.4	1250T
PCA_D000696	101.6	2.41	2.028
PCA_D000856	101.6	3.17	2.651	2000T	6061-T6511
PCA_D001013	101.6	5.74	4.666	2000T
PCA_D001538	101.6	6.35	5.13	3150T
PCA_D002316	101.6	4.78	3.922	2000T
PCA_D005729	101.6	8.08	6.408	3600	6061-T6
CHALCO_A000710	101.6	3.25	2.712	3150T
CHALCO_A000718	101.6	1.63	1.379	1250T
CHALCO_A001344	101.6	1.5	1.274	1250T
TP-1181	102	1.8	1.53
CHALCOGYC-42	105	15	11.451	3600T
CHALCO_A000752	106	3	2.621	1250T
PCA_D008894	108	19	14.344	3150T
CHALCO_A000390	108	4	3.529	1250T
CHALCO_A000753	108	3	2.672	1250T
CHALCO_AOOO390	108	4	3.529	1250T
CHALCO_A000525	110	5	4.453	2000T	6060-T6
CHALCOGYC-1112	110	15.5	12.424	5500T 378*210	6101B-T6
CHALCOGYC-623	110	16.5	13.086	3600	6101-T6
CHALCOGYC-1710	110	3	2.723	2000
CHALCOGYC-140	113.5	20	15.862	3150T
CHALCO_A001024	114	4.25	3.956	2000T
CHALCOGYC-2059	114	6	5.497	3150	6061-T6
PCA_D000218	114.3	6.02	5.527	2000T
PCA_D000334	114.3	5.41	4.996	2000T
PCA_D001014	114.3	6.02	5.527	2000T
PCA_D001019	114.3	8.56	7.673	3600T
PCA_D008514	114.3	44.705	26.39	7500T	6061-T6
CHALCO_A000825	115	5	4.665	3150T
CHALCOGYC-116	115	10	8.906	3600T
CHALCO_A000254	120	5	4.877	2000T	6060-T6
CHALCO_A000347	120	3	2.977	2000T	6060-T6
CHALCO_A000481	120	10	9.331	3600	6060-T66
CHALCOGYC-218	120	20	16.965	3150T
CHALCOgyc-587	120	15	13.36	3600T	440*260
CHALCOGYC-587	120	15	13.36	3600	6101-T6
CHALCOGYC-64	120	8	7.6	3600T
CHALCO_A001643	125	8	7.939	3600	6060-T66
CHALCOGYC-03	125	15	13.996	3600T
CHALCOGYC-60	125	25	21.206	7500T
CHALCO_D030085	125	2	2.087	2000T	6063-T6
PCA_D000855	127	6.35	6.496	3600T
PCA_D000857	127	4.78	4.951	3150T
PCA_D002317	127	3.18	3.335	2000T
CHALCO_A000253	130	3	3.232	2000T	6060-T6
CHALCO_A000419	130	5	5.301	3600	6060-T66
CHALCO_A001041	130	7	7.303	3600	6063-T5
CHALCO_A001802	130	2.5	2.704	3150T
CHALCOGYC-327	130	12	12.011	3150T
CHALCOGYC-368	130	8	8.279	3600T
CHALCOGYC-403	130	25	22.266	3150T
CHALCOGYC-139	139	15	15.777	3150T
CHALCO_A000391	140	3	3.486	2000T
CHALCO_A000601	140	5	5.726	3600	6060-T66
CHALCO_A000983	140	10	11.027	3600	6060-T66
CHALCO_AOOO391	140	3	3.486	2000T	6060-T6
CHALCOGYC-405	140	15	15.904	7500T	Φ440×260
CHALCOGYC-968	140	33	29.951	3600	6A02-T6
CHALCOGYC-98	140	12	13.029	7500T
CHALCOGYC-1869	140	4	2.239	3600T Φ440X260	6101
PCA_D001020	141.29	9.53	10.64	3600T
PCA_D000219	141.3	6.553	7.49	3600	6061-T6
CHALCOGYC-132	145	22.5	23.379	7500T
CCD00000004608	150	5	6.15	3600	6005A-T6
CHALCO_A000482	150	5	6.15	3600	6060-T66
CHALCO_A000693	150	3	3.741	3600	-
CHALCO_A000883	150	10	11.875	3600	6060-T66
CHALCOGYC-369	150	7	8.491	3600T
CHALCOGYC-370	150	8	9.636	3600T
CHALCOGYC-85	150	25	26.507	7500T
CHALCOGYC-1448	150	15	17.177	7500T 440*260	6A02-T6
CHALCOGYC-63	152	8	9.772	3600T
CHALCOGYC-86	155	12.5	15.109	7500T
CHALCO_A000975	156	3	3.893	3600	6060-T66
CCD00000004620	160	5	6.574	3600	6005A-T6
CHALCO_A000111	160	5	6.574	3600	6060-T66
CHALCO_A001271	160	10	12.723	5500T
CHALCOGYC-05	160	15	18.449	5500T
CHALCOGYC-137	160	15	18.958	3150T
CHALCOGYC-138	160	18	21.681	3150T
CHALCOGYC-1930	160	10	12.723	3600
CHALCOGYC-109	168	6.5	8.904	3600T
CHALCOGYC-115	168	6.5	8.904	3600T
PCA_D000813	168.27	7.11	9.722	3600	6061-T6
PCA_D002261	168.3	10.97	14.641	3600	6061-T6511
CHALCOGYC-1124	170	9	12.291	3600T	6101B-T7
CHALCOGYC-61	172	7	9.797	3600T
PCA_D002265	177.8	6.35	9.235	3600	6061-T6511
PCA_D002822	177.8	9.53	13.596	3600	6061-T6
CHALCOGYC-117	180	15	20.994	7500T	Φ440×260
CHALCOGYC-483	180	8	11.672		Φ440×260
CHALCOGYC-624	180	5	7.422	3150T
CHALCO_D030300	180	30	38.17	7500	6082-T6
CCD00000004624	184	3	4.606	5500T
CHALCOGYC-111	184	8	11.923	3600T
CHALCOGYC-114	190	20	28.84	5500T
CHALCOGYC-131	190	25	34.989	7500T
CHALCOGYC-330	190	4.5	7.081	5500T	Φ600×360
CHALCOGYC-662	190	12	18.118	7500T
CHALCOGYC-06	192	12	18.322	5500T
CHALCOgyc-576	192	12.5	19.032	5500T	600*360
CHALCO_A000976	200	5	8.27	3600	6060-T66
CHALCOGYC-283	200	20	30.536	5500T
CHALCOGYC-317	200	16	24.972	7500T	Φ600×420
CHALCOGYC-91	200	3.5	5.834	3600T
ALD_D000565	203.2	3	5.094	3600	6060-T5
PCA_D002264	203.2	6.35	10.603	3600	6061-T6511
CHALCOGYC-40	210	5	7.694	5500T
CHALCOGYC-488	210	25	39.231	7500T	Φ600×420
BFD-714	217	5	8.988	5500T	6061-T6
CHALCOGYC-2075	217	8	14.182	5500	6061-T6
PCA_D000695	219.1	8.18	14.631	3600	6061-T6
PCA_D002263	219.1	12.7	22.232	3600	6061-T6
CHALCOGYC-378	220	15	26.083	5500T	600*420
CHALCOGYC-94	230	36.5	59.908	7500T
CHALCOGYC-1380	240	10	19.509	7500T 600*420	6101-T6
CHALCOGYC-336	240	16	30.401	7500T	Φ590×425
CHALCO_D020055	241.3	19.05	35.913	7500T 600*420	6061-T6511
CHALCOGYC-473	242	10	19.679	7500T	Φ590×425
CHALCOGYC-93	247	22.5	42.846	7500T
PCA_D008892	250	25	47.713	5500T
CHALCOGYC-1949	250	3	1.514	7500T Φ590X425	1060
PCA_D010609	254	15.875	32.065	7500T	6061-T6
CHALCOGYC-1943	254	1.75	0.917	7500T Φ590X425	6063
CHALCO_D020045	255	24	47.026	12500 780*520	6061 T6511
CHALCOGYC-355	255	53	90.812	7500T	Φ590×425
CHALCOGYC-67	260	14	29.213	7500T	Φ590×425
CHALCOGYC-294	263	4	8.788	5500T	Φ590×360
CHALCOGYC-472	264	7	15.26	7500T	Φ590×425
CHALCOGYC-41	268	8	17.643	7500T	Φ590×425
BFD-713	277	6	13.789	7500T	6061-T6
TP-1616C	282	6	14.047	7500T	6061-T6
CHALCOGYC-51	286	8	18.865	7500T	Φ590×425
CHALCOgyc-582	296	7	17.16	7500T	600*420
CHALCO_D020044	298	21.5	50.425	12500	6061 T6511
YDKM-WH-01	300	5	12.511	7500T 600*420	6063-T5
CHALCOGYC-1923	300	6	14.963	7500
PCA_D007291	304.8	6.35	16.075	7500T	6061-T6
PCA_D008891	320	25	62.557	7500T
CHALCOGYC-255	320	10	26.295	7500T	Φ780×520
CHALCOGYC-518	324	7	18.822	12500T	Φ780×520
CHALCOGYC-292	332	6	16.591	7500T	Φ780×425
CHALCOGYC-282	333	7.5	20.707	7500T	Φ590×425
YDKM-WH-30	347	15	42.242	9000T 780*520	6063-T5
CHALCOGYC-108	348.4	6.7	19.419	7500T	Φ780×425
CHALCOGYC-222	350	57	141.663	12500T	Φ780×425
CHALCOGYC-293	356	10.5	30.772	7500T	Φ780×520
YDKM-WH-31	360	6	18.016	9000T 780*520	6063-T5
CHALCOGYC-474	372	10	30.706	12500T	Φ780×520
CHALCOGYC-225	376	8	24.972	12500T	Φ780×595
CHALCOGYC-318	376	6	18.831	12500T	Φ780×595
CHALCOGYC-315	380	7	22.979	12500T	Φ780×595
CHALCOGYC-919	385	6.5	20.869	12500T
CHALCOGYC-224	390	8	25.922	12500T	Φ780×595
CHALCOGYC-287	400	8	26.6	12500T	Φ780×595
CHALCOGYC-936	402	11	36.482	12500T
CHALCOGYC-178	406	8	27.008	12500T	Φ780×595
CHALCOGYC-540	434	7	25.354	12500T	780*600
CHALCOGYC-1922	450	7	26.304	9000
CHALCOGYC-286	452	9	33.819	12500T	Φ780×595
CHALCOGYC-1006	461	8	30.74	12500T
CHALCO_D020061	469	25.5	95.928	12500T 780*600	6061 T6511
CHALCOGYC-1221	492.8	11.4	46.551	12500T 960*600	6082
CHALCOGYC-1125	494	7	28.916	12500T 960*600	6063
CHALCOGYC-289	500	8	33.386	12500T	Φ950×595
508	508	8	33.929	12500T	Φ950×595
512	512	8	34.201	12500T	Φ950×595
CHALCOGYC-288	514	10	42.751	12500T	Φ950×595
CHALCOGYC-372	514	7	30.104	12500T	Φ950×595
CHALCOGYC-371	520	10	43.26	12500T	Φ950×595
CHALCOGYC-1196	573	10.3	49.162	12500T 960*600	6005A-H112
