1050 1060 1070 aluminum tube pipe

1050 1060 1070 aluminum tube pipe, the surface of the coiled tube is smooth, no pores, no wear, and nitrogen is maintained. It is used for evaporator, condenser and so on in the refrigerator air conditioner.


1050 aluminum tube




Product Grade Temper Specification(mm) Standard Main application
Plane tube, inner groove tube, D type tube 1050、1060、1070、1100、3003、D97 H112 OD: 4--12mm
Wall thickness:0.5-2.5mm, coil ID 400、500, coil OD 680、730、800
GB/T 20250-2006、Q/HJ 007-06 The air conditioning, refrigerator freezer.

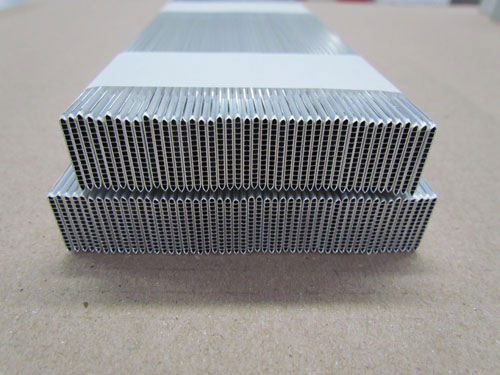

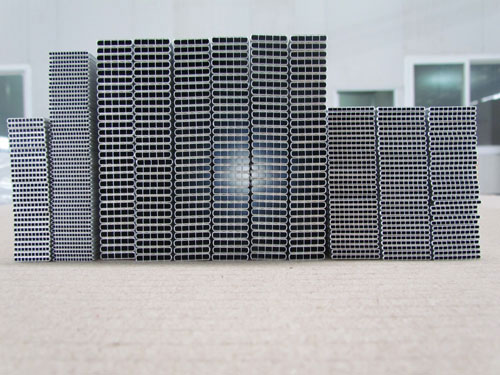

Multi-hole flat tube(spraying zinc) Wide: 12--44mm
High: 1.2--6mm, thickness: 0.20-1.0mm.
Coil ID: 400、500
Coil OD: 300、380
The radiator, the condenser

Product Grade Temper Specification(mm) Standard Main application
Plane tube, inner groove tube, D type tube 1050、1060、1070、1100、3003、D97 H112 OD: 4--12mm
Wall thickness:0.5-2.5mm, coil ID 400、500, coil OD 680、730、800
GB/T 20250-2006、Q/HJ 007-06 The air conditioning, refrigerator freezer.
Multi-hole flat tube(spraying zinc) Wide: 12--44mm
High: 1.2--6mm, thickness: 0.20-1.0mm.
Coil ID: 400、500
Coil OD: 300、380
The radiator, the condenser

Physical Property of 1050 1060 1070 aluminum tube pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
1050 O、H111 All 60 ~ 100 20 25 23
H112 All 60 20 25 23
F All
1060 O All 60 ~ 95 15 25 22
H112 All 60 25 22
1070 O All 60 ~ 95 25 22
H112 All 60 20 25 22
