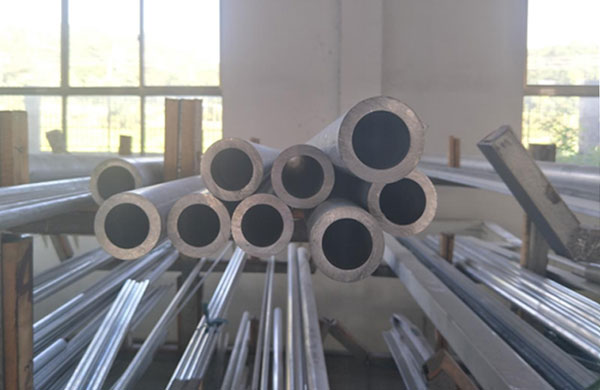

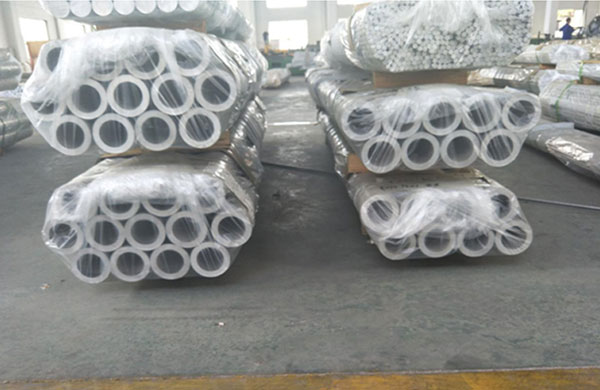

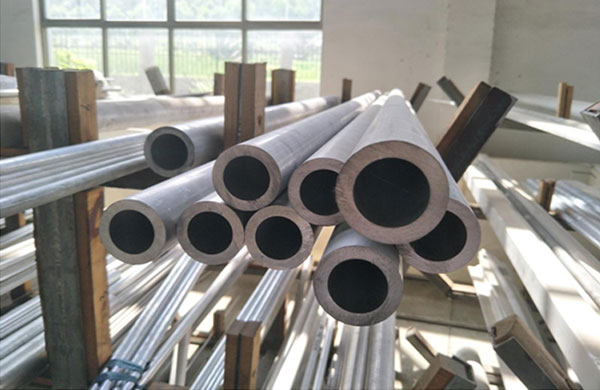

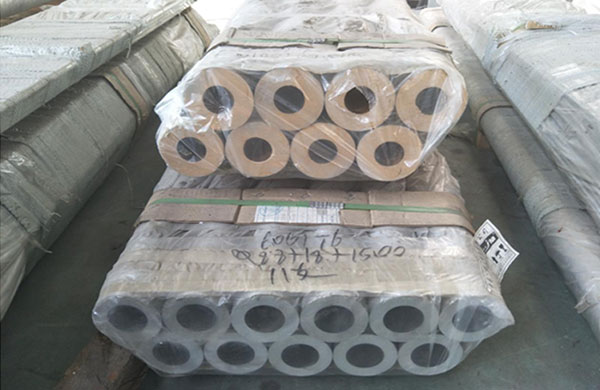

7050 7075 7178 aluminum tube pipe
2023-07-06 11:32:19

The 7050 is a high strength heat treatable alloy. It has high strength, anti stripping corrosion and stress corrosion cracking resistance. It is commonly used in aircraft structural parts for medium plate extrusion, free forging and die forgings.

7075 aluminum is called super high strength aluminum alloy. The yield strength of the alloy is close to tensile strength, the yield ratio is high, and the specific strength is very high. But the strength of plastic and high temperature is lower than that of the alloy. 7075 aluminum tube pipe is suitable for the bearing structure parts under normal temperature and below 120 C. The alloy is easy to process, and has good corrosion resistance and high toughness. 7075 aluminum tube pipe is widely used in the field of aviation and aerospace and has become one of the most important structural materials in this field.
7178 aluminum tube pipe has the characteristics of high strength, which is used for manufacturing aerospace components with high compression yield strength.



Specification:
Alloy: 7050 7075 7178
Temper: T73、T73510、T73511、T6、T6510、T6511、T62
OD: 3--130mm
ID: 3--100mm
Length: 1000mm--6000mm

Chemical Composition of 7050 7075 7178 Aluminum Tube Pipe
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ga	Zr	Ti	Other	Min.Al
7050	0.12	0.15	2.0-2.6	0.10	1.9-2.6	0.01	-	5.7-6.7	-	0.08-0.15	0.06	0.15	Remainder
7075	0.40	0.50	1.2-2.0	0.30	2.1-2.9	0.18-0.28	-	5.1-6.1	-	-	0.20	0.15	Remainder
7178	0.40	0.50	1.6-2.4	0.3	2.4-3.1	0.18-0.28	-	6.3-7.3	-	-	0.20	0.15	Remainder

Physical Property of 7050 7075 7178 Aluminum Tube Pipe
Alloy	Temper	Wall thickness /mm	Room temperature Test Result
			Tension Strength/MPa	Yield Strength/MPa	Elongation/%
					A50mm	A
			Not less than
7050	T76510	all	545	475	7	-
	T73511	all	485	415	8	7
	T74511	all	505	435	7	-
7075	O、H111	≤10.00	≤275	≤165	10	10
	T62	≤6.30	540	485	7	-
		>6.30-12.50	560	505	7	6
		>12.50-70.00	560	495	7	6
	T6、T6510、T6511	≤6.30	540	485	7	-
		>6.30-12.50	560	505	7	-
		>12.50-70.00	560	495	-	6
	T73、T73510、T73511	1.60-6.30	470	400	5	7
		>6.30-35.00	485	420	6	8
		>35.00-70.00	475	405	-	8
7178	O	all	≤275	≤165	10	9
	T6、T6510、T6511	≤1.60	565	525	-	-
		>1.6-6.30	580	525	5	-
		>6.30-35.00	600	540	5	4
		>35.00-60.00	580	515	-	4
		>60.00-80.00	565	490	-	4
	T62	≤1.60	545	505	-	-
		>1.6-6.30	565	510	5	-
		>6.30-35.00	595	530	5	4
		>35.00-60.00	580	515	-	4
		>60.00-80.00	565	490	-	4
