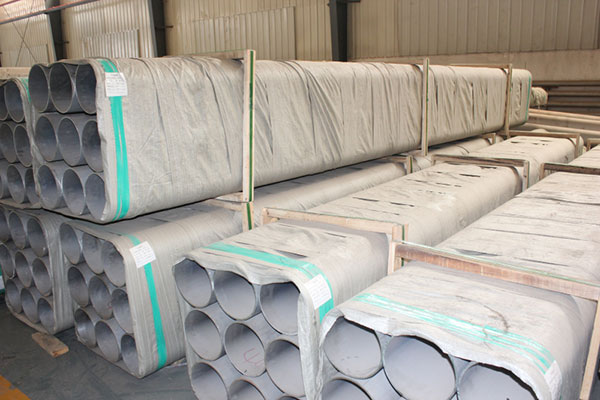

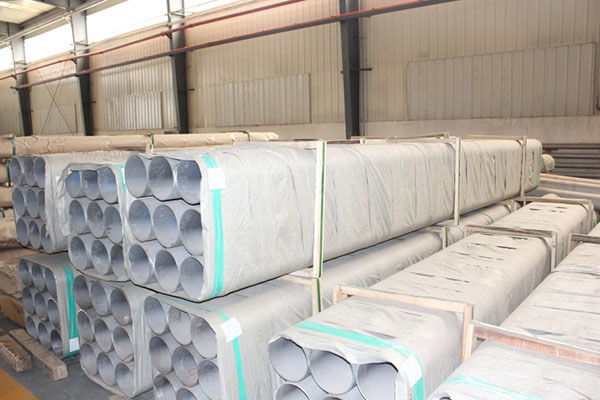

3003 3A21 Aluminum Tube Pipe

In the annealing state, 3003 3A21 Aluminum Tube Pipe their plasticity is very high. In the semi cold hardening, the plasticity is good, the cold is hardened, the plasticity is low, the corrosion resistance is good, the weldability is good, and the cutting property is bad. A low load part, such as an oil tank, a gasoline or a lubricating oil pipe, that requires high plasticity and good weldability, and is used in liquid or gas medium.











Specification:
Alloy:3003、3103、3A21
Temper:O, F, H112, H18
Normal size:23.5X1.91x0.32, 14.5X1.73x0.32, 16X2x0.32, 16X1.7x0.32, 14.55X2x0.32, 25X1.5x0.32, 18X2x0.32
Application:Water tank

Chemical Composition of 3003 3A21 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min.A1
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - - - 0.15 Remainder
3A21 0.6 0.7 0.20 1.0-1.6 0.05 - - 0.15 - - 0.10-0.20 0.15 Remainder

Physical Property of 3003 3A21 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
3003 O All 95 ~ 130 35 25 22
H112 ≤1.60 95 35
>1.60 95 35 25 22
F All
3A21 H112 All ≤165
