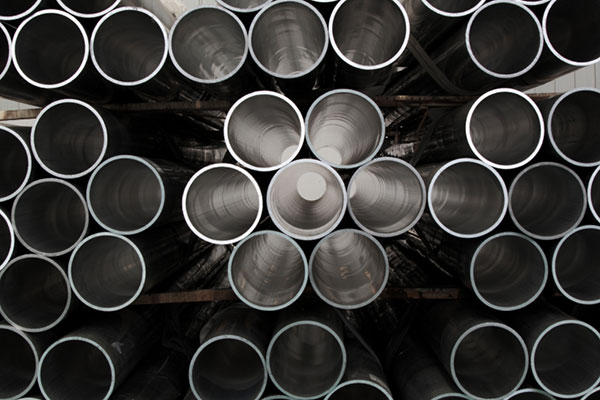

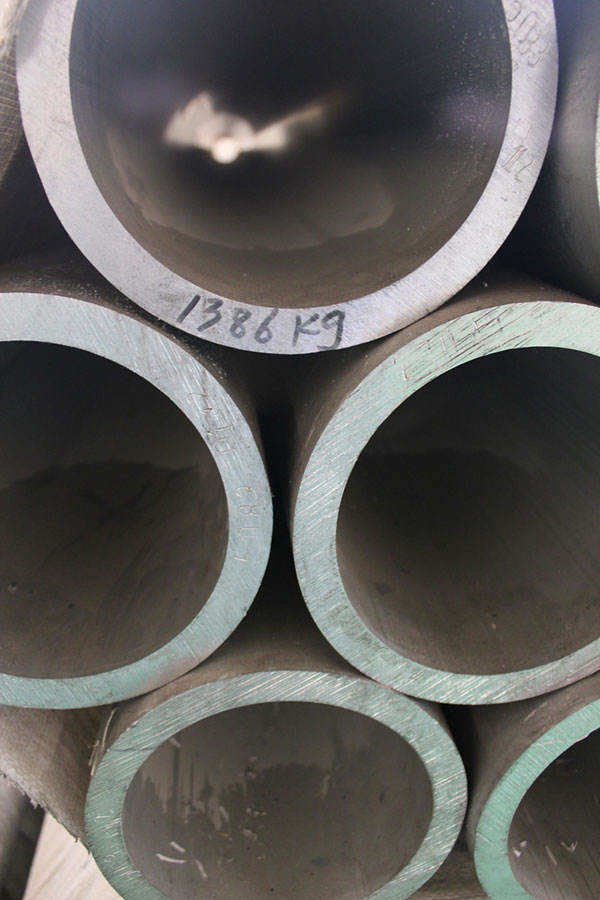

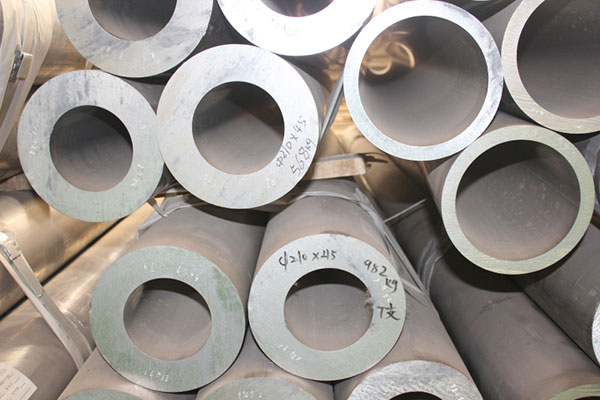

2219 2A11 2A14 2A50 aluminum tube pipe

2219 aluminum tube pipe has poor corrosion resistance, good machinability, poor solderability, easy arc welding and spot welding. It is suitable for structural parts and high strength welds working at high temperature of 315 degrees Celsius.





2A11 aluminum tube pipe has medium strength, good plasticity under annealing, rigid quenching and heat condition. It can be enhanced by heat treatment. It is used in the state of quenching and natural aging. The weldability of spot welding is good. There is crack tendency in gas welding and argon arc welding; it is good in the state of quenching and aging, and is bad in the state of annealing.

2A14  aluminum tube pipe main chemical components are zinc, iron, magnesium and aluminum. It has good machinability, resistivity, spot welding and seam welding.







Specification:
Alloy: 2219、2A11、2A14、2A50
Temper: O、T31、T3510、T3511、T62、T81、T8510、T8511
OD: 3--130mm
ID: 3--100mm
Length: 1000mm--6000mm

Chemical Composition of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ga V Ti Other Min.Al
2219 0.20 0.30 5.8-6.8 0.20-0.40 0.02 - - 0.10 - - 0.02-0.10 0.15 Remainder
2A11 0.7 0.70 3.8-4.8 0.40-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder
2A14 0.6-1.2 0.7 3.9-4.8 0.4-1.0 0.4-0.8 - 0.10 0.30 - - 0.10 0.15 Remainder
2A50 0.7-1.2 0.7 1.8-2.6 0.4-0.8 0.4-0.8 - 0.10 0.30 - - 0.15 0.15 Remainder

Physical Property of 2219 2A11 2A14 2A50 Aluminum Tube Pipe
Alloy Temper Wall thickness
/mm
Room temperature Test Result
Tension Strength/MPa Yield Strength/MPa Elongation/%
A50mm A
Not less than
2219 O all ≤220 ≤125 12 10
T31、T3510、T3511 ≤12.50 290 180 14 12
>12.50~80.00 310 185 - 12
T62 ≤25.00 370 250 6 5
>25.00 370 250 - 5
T81、T8510、T8511 ≤80.00 440 290 6 5
2A11 O all ≤245 - - 10
T1 all 350 195 - 10
2A14 T6 all 430 350 6 -
2A50 T6 all 380 250 - 10
