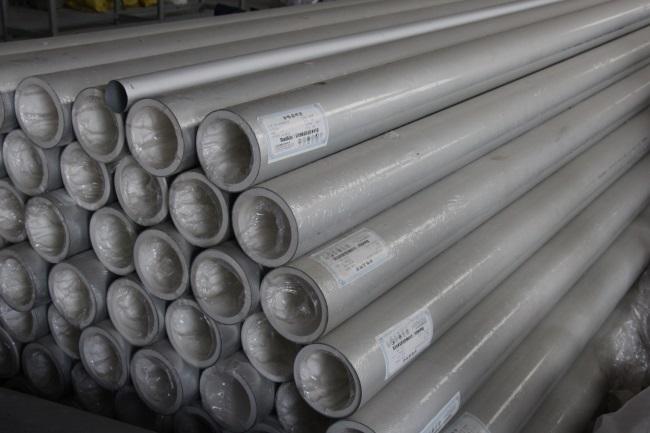

Introduction of
Rigid Aluminum Alloy Pipe
Fluid: compressed air, vacuum, nitrogen, inert gas, etc.
Material: ductile aluminum alloy (Aluminum Alloy 6063), density 2.7kg/dm
Treatment: Epoxy resin coated externally and anodized interior
Coating: Electrostatic spraying RAL5015, thickness = 70 /-10 um
Temperature: -29 80.
Pipeline quality: calibrated, accurate extrusion process
Maximum working pressure: 13bar
Vacuum: 0.013 bar (absolute pressure)
Pipeline length: 6m or 3m.
Product Description of
Rigid Aluminum Alloy Pipe:
Rigid Aluminum Alloy Pipe are coated with fluorocarbon (polyvinylidene fluoride (PVDF). Excellent anti-corrosion performance - benefiting from excellent chemical inertia, acid, alkali, salt and other chemical substances and a variety of chemical solvents, to provide a protective barrier for the substrate; the film is tough - high surface hardness, impact resistance, buckling resistance, good wear resistance, showing excellent physical and mechanical properties. Ultra-long weatherproof coating contains a large number of F-C bonds, which determines its super stability, non-pulverization, non-fading, and service life of up to 20 years.
Use of
Rigid Aluminum Alloy Pipe:
Rigid Aluminum Alloy Pipe are suitable for mining, wood, sugar, chemical, power plant, cement, paper, shipping, smelting, machinery, manufacturing and processing industries.
