Introduction of
Aluminum Multi Port Extruded (MPE) tube

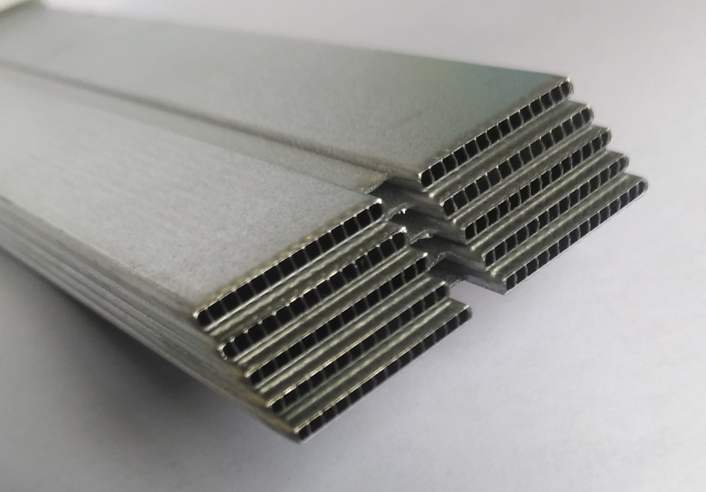

Aluminum Multi Port Extruded (MPE) tube (also known as "parallel flow aluminum flat tube") is a kind of thin-walled porous flat tube material, which is made of refined aluminum rod, hot extrusion, zinc spraying and anti-corrosion treatment. It is mainly used in the air conditioning system of various refrigerants. As a pipe part carrying new environmental protection refrigerant, adopting new environmental protection system is the key material of the new generation of parallel flow microchannel air conditioning heat exchanger 。
Present situation of
Aluminum Multi Port Extruded (MPE) tube products
Aluminum Multi Port Extruded (MPE) tube is a new type of environmental protection refrigerant bearing pipe component, which was first used in the automotive air conditioning system (EU 1996, China 2002). Due to its high technical content and great production difficulty, before 2010, only a few manufacturers in the world, such as Norway's Heidelberg, Japan's Mitsubishi and Guhe, and South Korea Yijin, etc., were producing this product. Their production technology was basically monopolized by them, and domestic enterprises had no capacity to produce it. The materials required by domestic automobile air conditioning heat exchanger manufacturers can only be obtained from the only foreign manufacturers in China Capital subsidiary or direct import.
Specification of
Aluminum Multi Port Extruded (MPE) tube
The maximum width of
Aluminum Multi Port Extruded (MPE) tube is 230mm-240mm, depending on the thickness
1) the width is 45mm, the thickness is about 5mm, the wall thickness can be 0.3-0.6mm, and the thickness tolerance can be 0.05mm
2) 45-125mm wide, 6-20mm thick, wall thickness of 0.8-2.5mm, thickness tolerance of 0.1-0.2mm
3) above 125mm in width, 1.2-3mm in wall thickness and 0.2mm in thickness tolerance
Application of
Aluminum Multi Port Extruded (MPE) tube
Aluminum Multi Port Extruded (MPE) tube is mainly used in household appliance refrigeration cabinet, refrigeration vehicle refrigeration base station cooling (Huawei 5g base station application) industrial refrigeration
