5083-H112 Precision Aluminum Tube
2022-03-04 17:24:00

Introduction of 5083-H112 precision aluminum tube

5083-H112 precision aluminum tube is a high magnesium alloy with good strength, corrosion resistance and machinability among non-heat treatable alloys. The surface is beautiful after anodizing. Arc welding performance is good. The main alloying element in 5083 precision aluminum tube is magnesium, which has good corrosion resistance and weldability, as well as medium strength. Good corrosion resistance, good cold workability, and moderate strength.

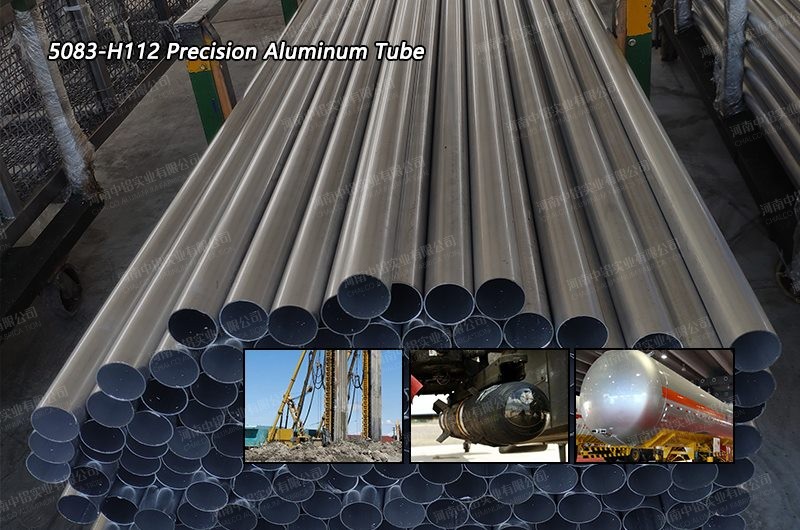

5083-H112 Precision Aluminum Tube

The performance of 5083-H112 precision aluminum tube

5083 precision aluminum tube is an AL-Mg alloy aluminum plate, which is the most widely used anti-rust aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, and cannot be strengthened by heat treatment. It has good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, and poor machinability. O state).

Chemical composition of 5083-H112 precision aluminum tube

Aluminum Al : Allowance

Silicon Si: ≤0.40

Copper Cu: ≤0.10

Magnesium Mg: 4.0 to 4.9

Zinc Zn: ≤0.25

Manganese Mn: 0.40~1.0

Titanium Ti: ≤0.15

Chromium Cr: 0.05~0.25

Iron Fe: 0.000 to 0.400

Note: single: ≤0.05;


Mechanical properties of 5083-H112 precision aluminum tube

Tensile strength (σb ): 170~305MPa condition

Yield strength σ0.2 (MPa)≥65

Elastic modulus (E): 69.3~70.7Gpa

Annealing temperature: 345°C.

Hardness: between 210-230

Application of 5083-H112 Precision Aluminum Tube

Excellent corrosion resistance makes 5083 precision aluminum pipes widely used in marine applications such as ships, automobiles, aircraft welding parts, subway light rails, pressure vessels that require strict fire protection (such as liquid tankers, refrigerated vehicles, refrigerated containers), refrigeration devices, televisions Towers, drilling equipment, transportation equipment, missile parts, armor, etc.
