Chalco Aluminium Industrial Profile Extrusion Capacity |
||
| Alloy | Temper | Fabrication |
|
1035,1050A,1050,1060, 1070, 1070A, 1100, 1200 |
O,F, H112,H24,H18,F,T4 | Anodizing, Electrolytic coloring,Liquid paiting, Precision,Cut-to-length,CNCMachine, Fabrication, Assembly, Prototypes,Design assistance. |
|
2014,2024,2017,2A01,2A04, 2A10,2A11,2A12,2A13,2A14,2A50,2A70,2A80,2A90, 2B11,2B12,2D12,2B04, 2B06,2B50,2D70 |
O,F, T1, T2, T3, T4, T5,T6, T66, T651, T6511,T3511， T351,T451,T4511 | |
|
3A21,3003 |
O,F, H112,H24,H18 | |
| 4A11 | ||
|
5050,5083,5052,5056,5A02,5A03,5A05,5A06, 5A12,5A13,5B05,5B06, 5183, 5456 |
H112, O, F, H34,H38 | |
|
6063,6060,6351,6061,6082,6463,6005,6005A,6105, 6106,6A02,6351,6262,6101, 6351, 6163 |
F, T1, T2, T3, T4, T5,T6, T66, T651, T6511,T3511 | |
|
7N01,7003,7A03,7A04, 7A09,7A10,7003,7075, 7A15 |
F, T1, T2, T3, T4, T5,T6, T66,T651,T6511,T3511,T73511, T76511 | |
|

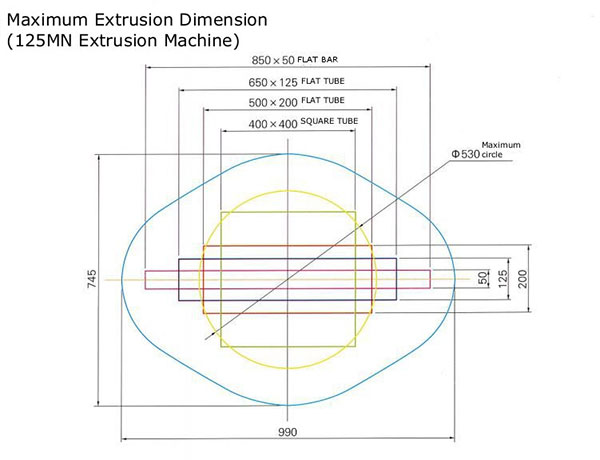

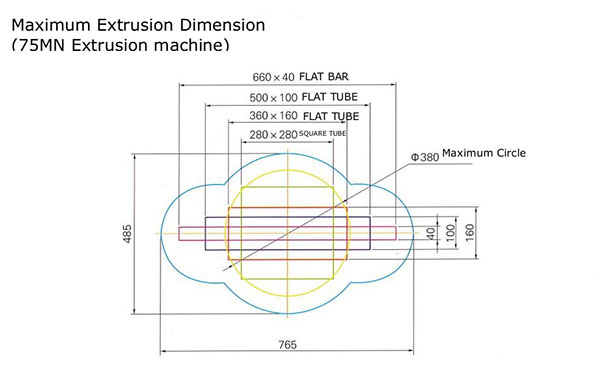

Chalco Aluminium Industrial Profile Size Capacity |
||
| Open Profile dimensions: | Min 4mm×3mm, Max.850mm×50mm. | |
| Closed profiles dimension: | Min. 6.35mm ×1mm, Max. 573mm×10mm. | |
| Weight per meter: | Min. 0.03kg/m, Max. 124kg/m | |
| Profile length: | Maximum 28m(standard 6000mm) | |
|
||
|
||
